Poly(vinyl acetate) BP Ph Eur Grade
DEFINITION
Poly(vinyl acetate) is a thermoplastic polymer obtained by polymerisation of vinyl acetate
using a suitable starter, without solvent or with water or 2-propanol. The vast majority of the acetate
moieties are attached to non-neighbouring carbon atoms of the chain. The index n is about 100 - 17 000.
The relative molecular mass lies between 10 000 and 1500 000. The viscosity is 4 to 250
mPa·s. The ester value, which characterises the degree of hydrolysis, is 615 to 675.
CHARACTERS

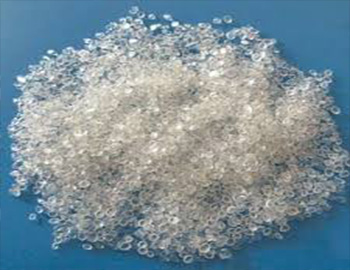

Appearance: White or almost white powder or colourless granules or beads.
Solubility: Practically insoluble in water, freely soluble in ethyl acetate, soluble in alcohol.
It is hygroscopic and swells in water. It softens at temperatures above 40-50C.
IDENTIFICATION
A. Infrared absorption spectrophotometry. To pass the test.
B. It complies with the test for viscosity (see Tests).
C. Saponify 0.500 g in a mixture of 25.0 ml of 0.5 M alcoholic potassium hydroxide and25.0 ml of water.
The solution obtained gives the reaction of acetates.
TESTS
Solution S: Suspend 50.0 g in 100 ml of ethyl acetate R in a borosilicate glass flask
with a ground-glass neck. Heat under a reflux condenser with constant stirring for 30 min. Allow to
cool. Filter through a tared sintered glass filter (16) (2.1.2) and wash the residue with 50.0 ml of
ethyl acetate, pour the filtrate into a 250 ml graduated flask. Dilute to 250 ml with ethyl acetate.
Appearance of solution: Solution S is clear and colourless.
Viscosity: 85 per cent to 115 per cent of the value stated on the label.
Determine the viscosity immediately after preparation of solution S at 20 ± 0.1C by using a rolling
ball viscosimeter.
Acid value: Maximum 2.0, determined on 5.0 g dissolved in 50 ml of alcohol by shaking for 3 h.
Ester value: 615 to 675.
Saponify 0.500 g in a mixture of 25.0 ml of 0.5 M alcoholic potassium hydroxide and 25.0 ml of
water.
Residual peroxides: Maximum 100 ppm, calculated as hydrogen peroxide.
Vinyl acetate: maximum 0.3 per cent to meet the test.
Heavy metals: Maximum 10 ppm.
Loss on drying: Maximum 1.0 per cent, determined on 1.000 g by drying in an oven at 105C.
Sulphated ash: Maximum 0.1 per cent, determined on 1.0 g.
Poly(vinyl acetate) BP Ph Eur Grade
DEFINITION
Poly(vinyl acetate) is a thermoplastic polymer obtained by polymerisation of vinyl acetate
using a suitable starter, without solvent or with water or 2-propanol. The vast majority of the acetate
moieties are attached to non-neighbouring carbon atoms of the chain. The index n is about 100 - 17 000.
The relative molecular mass lies between 10 000 and 1500 000. The viscosity is 4 to 250
mPa·s. The ester value, which characterises the degree of hydrolysis, is 615 to 675.
CHARACTERS
Appearance: White or almost white powder or colourless granules or beads.
Solubility: Practically insoluble in water, freely soluble in ethyl acetate, soluble in alcohol.
It is hygroscopic and swells in water. It softens at temperatures above 40-50C.
IDENTIFICATION
A. Infrared absorption spectrophotometry. To pass the test.
B. It complies with the test for viscosity (see Tests).
C. Saponify 0.500 g in a mixture of 25.0 ml of 0.5 M alcoholic potassium hydroxide and25.0 ml of water.
The solution obtained gives the reaction of acetates.
TESTS
Solution S: Suspend 50.0 g in 100 ml of ethyl acetate R in a borosilicate glass flask
with a ground-glass neck. Heat under a reflux condenser with constant stirring for 30 min. Allow to
cool. Filter through a tared sintered glass filter (16) (2.1.2) and wash the residue with 50.0 ml of
ethyl acetate, pour the filtrate into a 250 ml graduated flask. Dilute to 250 ml with ethyl acetate.
Appearance of solution: Solution S is clear and colourless.
Viscosity: 85 per cent to 115 per cent of the value stated on the label.
Determine the viscosity immediately after preparation of solution S at 20 ± 0.1C by using a rolling
ball viscosimeter.
Acid value: Maximum 2.0, determined on 5.0 g dissolved in 50 ml of alcohol by shaking for 3 h.
Ester value: 615 to 675.
Saponify 0.500 g in a mixture of 25.0 ml of 0.5 M alcoholic potassium hydroxide and 25.0 ml of
water.
Residual peroxides: Maximum 100 ppm, calculated as hydrogen peroxide.
Vinyl acetate: maximum 0.3 per cent to meet the test.
Heavy metals: Maximum 10 ppm.
Loss on drying: Maximum 1.0 per cent, determined on 1.000 g by drying in an oven at 105C.
Sulphated ash: Maximum 0.1 per cent, determined on 1.0 g.
Polyvinyl Acetate FCC Food Grade
DESCRIPTION
Polyvinyl Acetate occurs as a clear, water white to pale yellow, solid resin. It is prepared by
the polymerization of vinyl acetate. After completion of polymerization, the resin is freed of traces of
residual catalyst (usually a peroxide), monomer, and/or solvent by vacuum drying, steam sparging,
washing, or any combination of these treatments. The resin is soluble in acetone, but it is insoluble in
water.
Function:Masticatory substance in chewing gum base.
REQUIREMENTS
Identification: The infrared absorption spectrum of a melted sample on a potassium
bromide plate exhibits relative maxima at the same wavelengths as those of a typical spectrum as shown
in the section on Infrared Spectra, using the same test conditions as specified therein.
Free Acetic Acid: Not more than 0.05%.
Lead: Not more than 3 mg/kg.
Loss on Drying: Not more than 1.0%.
Molecular Weight: Not less than 2000.
